Serendipity Blackmagic / Megarip 8.1+ features support for the Proofing Mode added to the Epson Surecolor SC-P9500 / SC-P7500 series printers in the

LK09K9 / LL09K9

Epson firmware release. The printer must have this firmware version (or later) installed for Proofing Mode to function.

Proofing Mode prints at 1200×1200 dpi resolution and is designed for the precision reproduction of proofing material containing small text elements.



Configuring Proofing Mode for print using the EPSON SC-p9500/SC-P7500… driver

During the standard process of calibrating a Media using the

Epson SC-P-9500/SC_P7500… driver:

  • In the Output Driver panel > Driver Settings of the Media

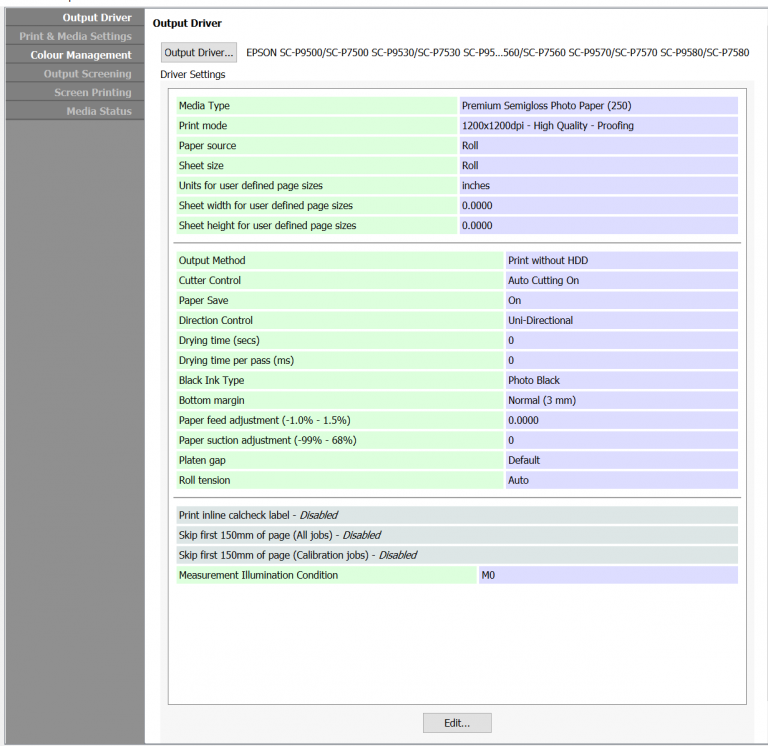

EpsonSCP9500 ProoingMode driver 768x746
  • Select Print mode: 1200x1200dpi – High Quality – Proofing
  • or select 1200x1200dpi – High Quality – Proofing – Fine (single head mode)

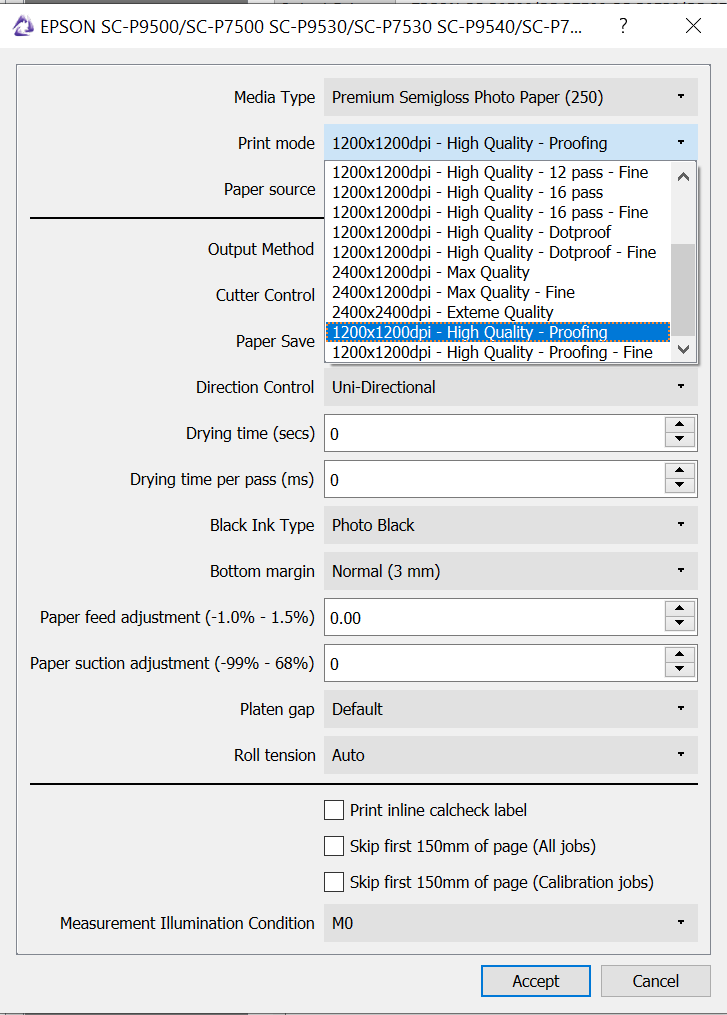

EpsonSCP9500 ProoingMode driver edit
  • For best print results it is recommended that the print Direction Control: Uni-Directional, be set.

Note – if the Epson printer is not running the firmware mentioned above (or later) the Print Mode will default to 1200×1200 dpi – High Quality – 12 pass for printing.



Configuring Proofing Mode for print using the EPSON SC-p9500/SC-P7500… with Epson Precision Dot driver

During the standard process of calibrating a Media in CMYK or RGB mode using the

EPSON SC-p9500/SC-P7500… with Epson Precision Dot driver:

  • In the Output Driver panel > Driver Settings of the Media

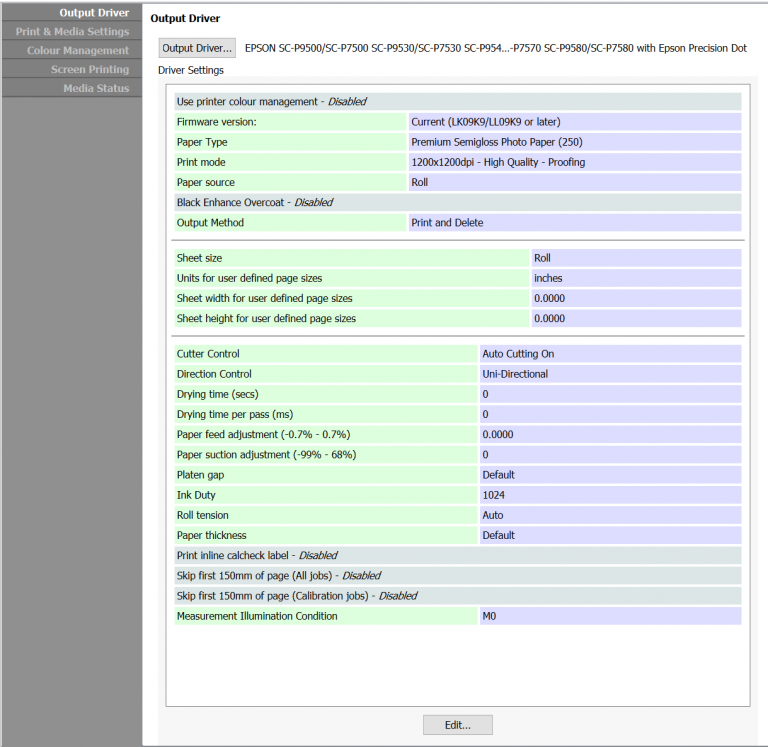

EpsonSCP9500 ProoingMode HTM 768x747
  • Set the Firmware Version: to Current (LK09K9/LL09K9 or later)

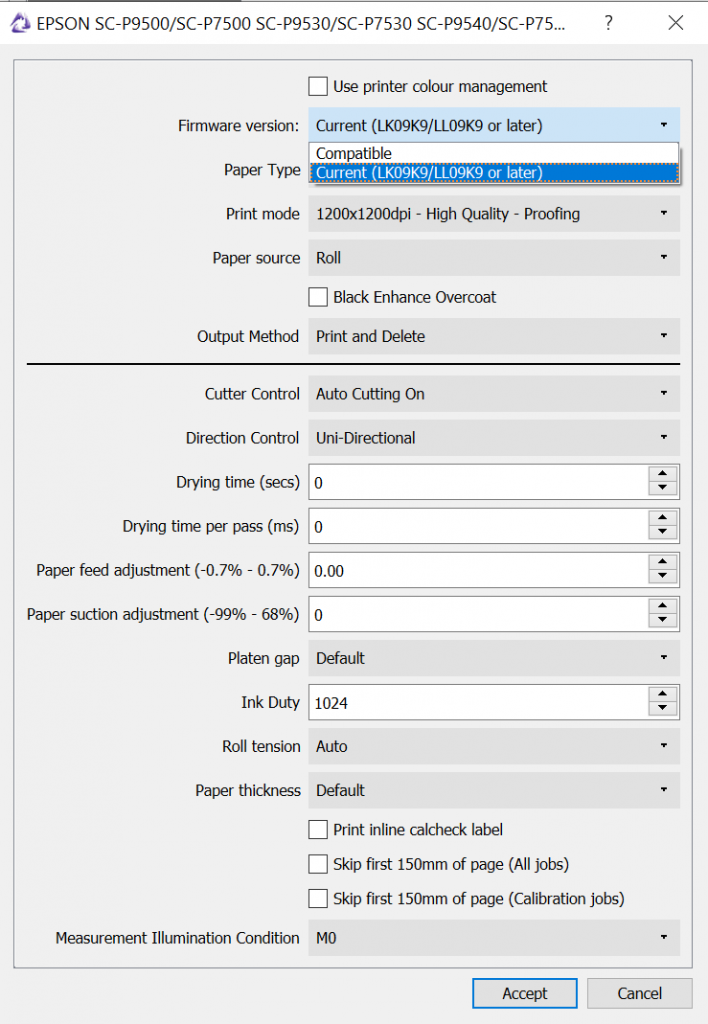

EpsonSCP9500 ProoingMode HTM firmware 708x1024


  • Select Print mode: 1200x1200dpi – High Quality – Proofing
  • or select 1200x1200dpi – High Quality – Proofing – Fine (single head mode)

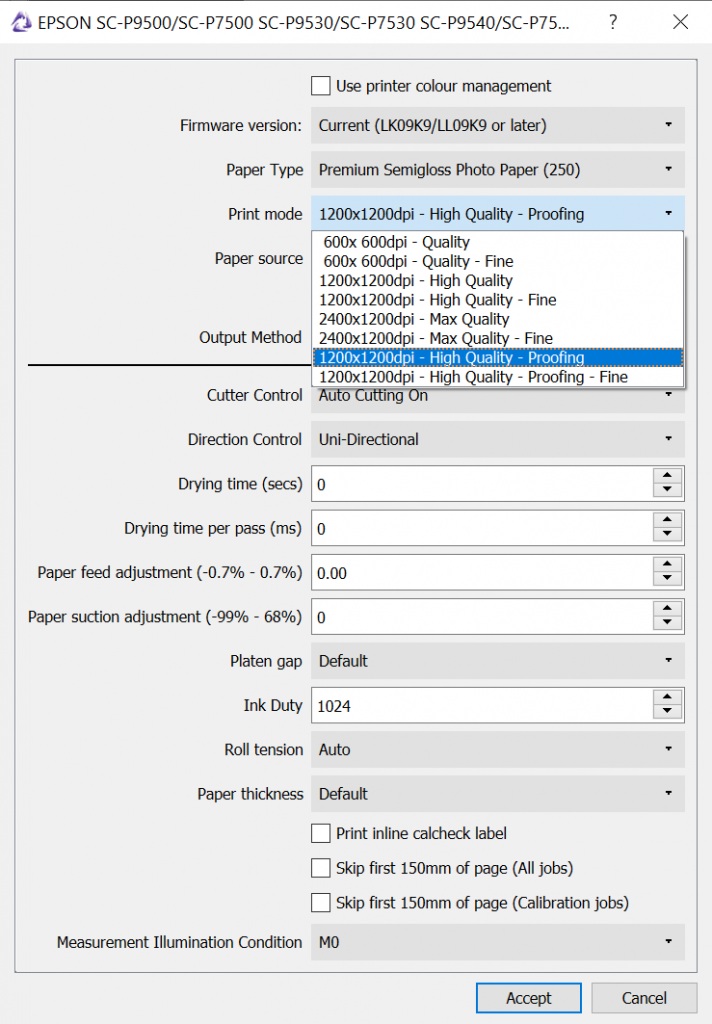

EpsonSCP9500 ProoingMode HTM edit 712x1024
  • For best print results it is recommended that the print Direction Control: Uni-Directional, be set.

Note – if the Epson printer is not running the firmware mentioned above (or later) submitted jobs will fail to print.
